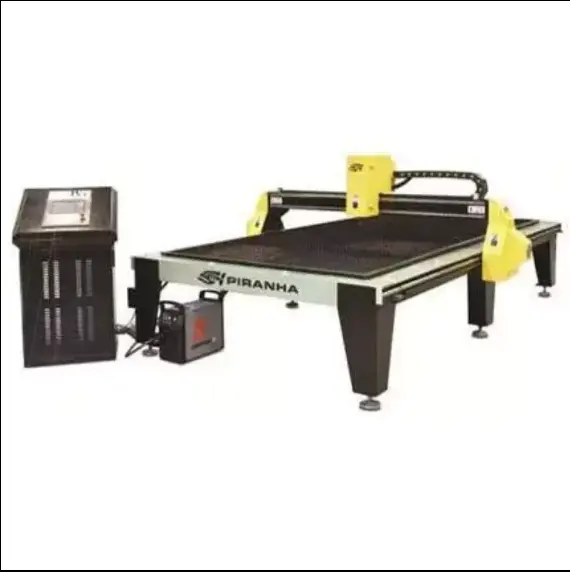

Piranha’s latest Plasma Table line introduces an even more affordable plasma table. The Piranha B-Series Plasma Table is perfect for your hobby to light industrial cutting needs. This table retains a lot of the high end features found on the C-Series table and only is short some of the things you don’t need when looking at lighter duty cutting cycles.
|Rapid Traverse Speed||314 ipm|
|Dimensions||158”L x 102”W x 60”H|
Maximum Rapid Speed: 314 IPM
CNC Control: Starfire
Frame and Bridge Construction: Fabricated machine table, Welded steel bridge
Drive Motors: X-axis – Two Stepper Motors, Y-axis – Stepper Motor, Torch Height Control – Stepper Motor
Drive System: X-axis – Rack and Pinion each side, Y-axis – Rack and Pinion Z-axis – Ball Screw
Torch Control: Arc Voltage with Initial Height Sensing
Torch Protection: Pneumatic Breakaway
-Rugged Construction – Simple and rugged bolted table with high accuracy linear guides and -bearings. Machine is assembled complete at the factory
-Dual Side Drive – gantry driven on both sides for maximum stability
-CNC Control with 10.4” High resolution color LCD monitor, shape library with 20 configurable shapes, 8MB memory & USB interface
-Stepper motors and drives – Stepper motors on both X-axis and Y-axis with a maximum traverse speed of 8000mm/min.
-Water table slag collection – eliminates need for dust collector.
-MicroStep Programmable Torch Height Control – controls torch height automatically
-Breakaway Torch Mounting – protects the torch from inadvertent part tip-ups
-ProNEST® 2019 LT Programming System – 2D CAD drawing, DXF importing, integrated shape library, drag and drop nesting.
AVAILABLE PLASMA SYSTEMS**
Powermax 45XP: 1/2” (12mm) Production / 1/2” (12mm) Maximum (mild steel)
Powermax 65: 5/8” (16mm) Production / 5/8” (16mm) Maximum (mild steel)
Powermax 85: 3/4” (20mm) Production / 3/4” (20mm) Maximum (mild steel)
Powermax 105: 3/4” (20mm) Production / 7/8” (22mm) Maximum (mild steel)
Powermax 125: 3/4” (20mm) Production / 1” (25mm) Maximum (mild steel)
** Includes interface cable
