New HACO VARI 220/6 | Notching Machines

Description

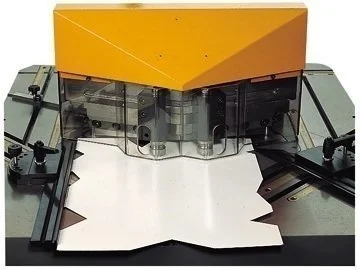

The high precision VARI uses a specially designed system to adjust top and bottom blade simultaneously. This means that the VARI notcher has an adjustable notching angle between 30-140 degrees. This makes the VARI a very versatile machine with capacity of 6mm mild steel with maximum length of 220mm.
The VARI notcher uses a hydro- mechanical system to lock or unlock the blade setting. When unlocked, the operator can easily rotate a hand wheel on each side of the machine to rotate both top and bottom blades between 30 and 140 degrees.

Angular scale

An angular scale integrated into the machine table displays the notch angle set on the VARI. Several adjustable stops and scales come standard on the VARI. The VARI is delivered with a full oil tank, extra set of blades and electric foot switch.
