New STANDARD INDUSTRIAL AM325-30-144 | Straight Side Presses

Description

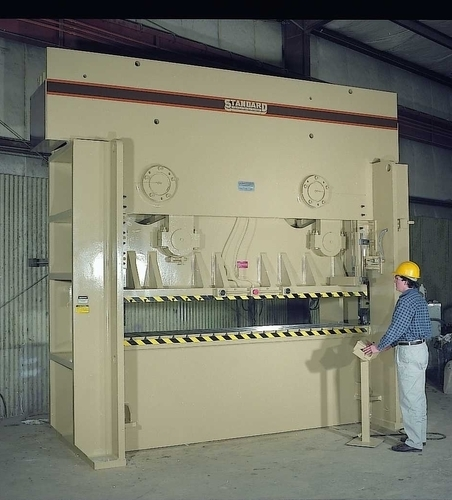

The model AM straight side press is perfect for full length forming at full tonnage as well as left to right and off-center loading at full tonnage via our extremely heavy duty gibbing system and enclosed end frame design. The model AM also allows front to back off-center loading within +,- 6" of the centerline of the bed. If off-center loading is required the entire front to back width of the bed then the model CM press should be considered. Contact the factory for details on the differences in these presses.

The model AM straight side press is a more traditional style of straight side with much more left to right bed and ram area than the smaller bed DCSS presses however has a smaller price tag than the extremely heavy duty CM style presses. The AM is able to hold tolerance left to right much better than a direct hydraulic design due to its bellcrank linkage that gives the press full tonnage from one end of the press to the other.

Our single cylinder design develops full tonnage anywhere along the bed left to right and front to back. The bellcrank linkage system is actuated with a single cylinder utilizing A660 bronze at the bearing points. These off the shelf material bearings are designed to withstand up to 6 times the machines overall tonnage and they are covered by our extensive 5 year parts warranty. The model AM is designed to accept virtually all forms of press applications whether it is punching, forming, blanking, coining, swedging, die tryout, trimming, drawing and so on. The AM is available up to 1,000 tons and particularly excels at progressive die set ups where you have varying amounts of tonnage being applied across the bed all in the same stroke.
